GB_filter-database24 DesignFiX - PRODUCT FILTER ➜ Result / Errors

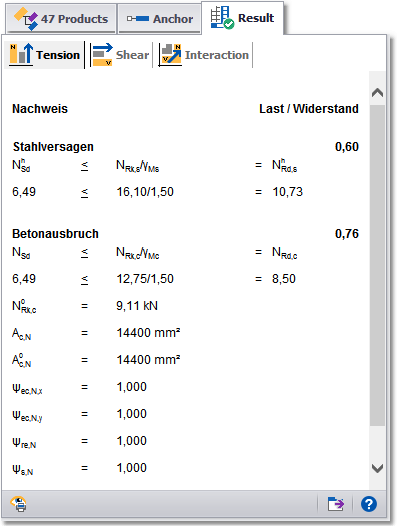

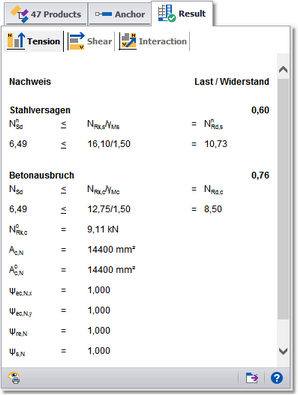

If DesignFiX can determine a valid design result based on your entered data, this will be displayed on the tab Result. It is quite possible to create design results that are not valid in context with the relevant approval, e. g. overloaded anchors. The results for tension, shear and interaction are presented on individual tabs. This form of the output is identical in content to the print preview, but provides an additional quick access to the design results.

In the event that DesignFiX detects incorrect input data a list of error messages  is shown on the tab Result.

gb_productselectionresult_zoom75

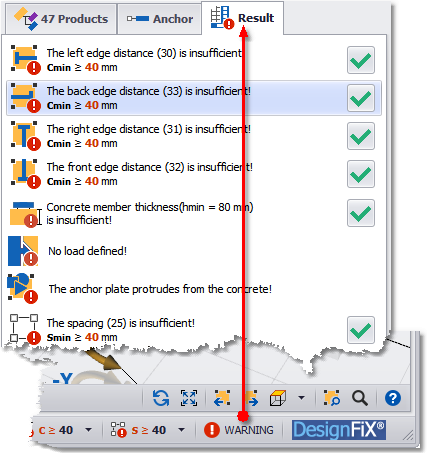

Examples of error messages:

gb_productselectionresulterrors_zoom75
