Useful examples, typical design situations in DesignFiX

International

DesignFiX considers important design standards and regulations and therefore, can be used in many countries worldwide. All loads and dimensions can be displayed and handled in metric and imperial units.

Z

Safe and reliable

DesignFiX recognizes incorrect inputs with respect to geometrical conditions and provides adequate suggestions for improvement. Thereby, the working time is reduced to a minimum. The verifiable printout gives you the opportunity to trace each calculation step of the program. This gives you the confidence that your design results are complete and understandable.

e

Clear and flexible

Alternatively, DesignFiX provides a tabular data entry or an entry directly in the 3D-view. The graphic can be rotated, swivelled, tilted and zoomed easily by mouse or touch-input. DesignFiX displays the actual use of capacity of the fastening and of the geometrical conditions at any time.

DesignFiX Case Study

The solutions for your company

DesignFiX Case Study

These are the features for your anchors

User Interface

  • Intuitive
  • Permanent visible information
  • Use of capacity in real time
  • Clear product structure

Design Result

  • Automatic multiple design
  • Fast result preview
  • Auto-corrections

Printout

  • Fast PDF preview
  • Verifiable printout
  • Detailed proofs

DesignFiX Screenshots

The three main screens at a glance:
Home, Product selection, 3D model

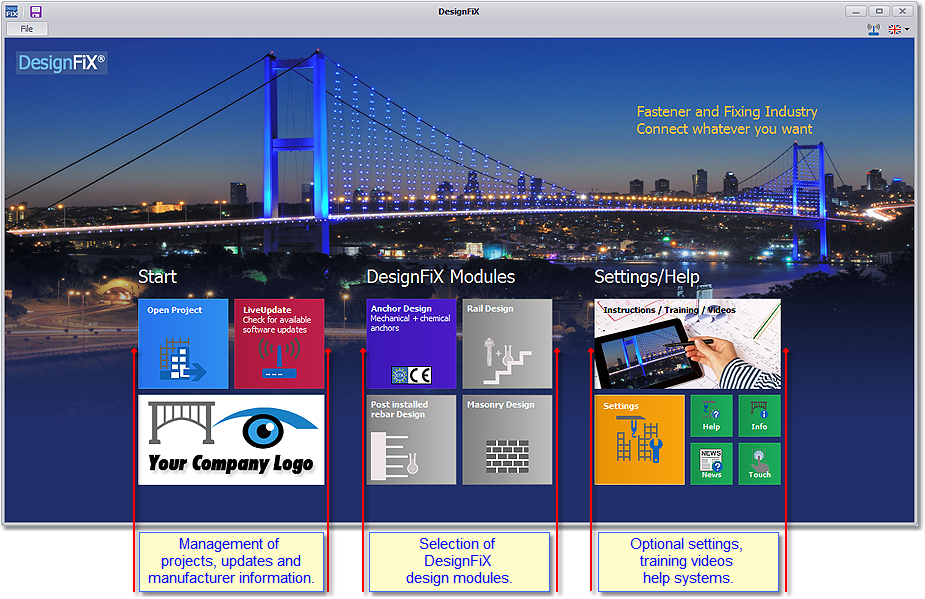

The start page appears in the Windows 10 tile design with three main groups:

m

Managing projects, updates and manufacturer information

Project management, LiveUpdate, start anchor design, manufacturer information

Selection of DesignFiX design modules

Anchor Design, Rail Design, Rebar Design, Masonry Design

Optional settings, training videos, help system

Help system, Program settings, Suppliers/products, About DesignFiX, News, Touchscreen support

Coming from the start page all subsequent user interfaces contain a ribbon bar with module dependent content. The ribbon bar is divided thematically (tab) and offers various functions (button) and selection mechanisms (ComboBox, dialogues, etc.). The individual functions are grouped together and associated categories are highlighted in colors. When a function is temporarily not visible or is shown to be inactive, this function is not available or not suitable for your current design process. This behavior facilitates the first step and the handling of DesignFiX and protects you from misuse.

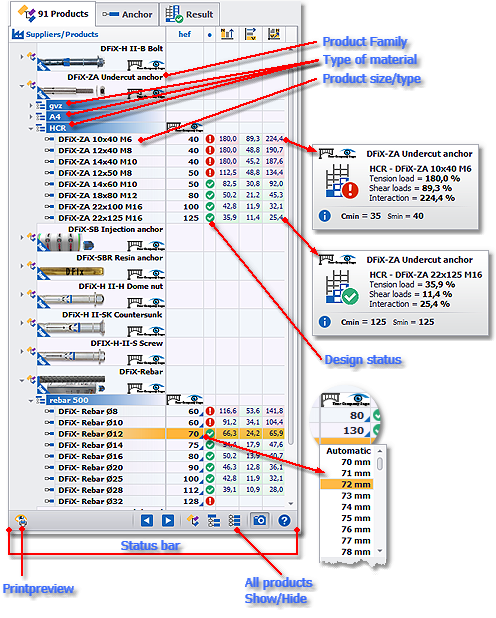

In the product selection, all products which fulfill the conditions of the product filter are listed in a tree structure.

Manufacturer/product family

Anchor material (gvz, A4, HCR …)

Product/size
+ Anchorage depth
+ State of the design
+ Utilization of capacity

The top level of the tree shows the manufacturer or its product families, including product images. If we expand a family, then all anchor materials of the selected family will be displayed in the second label of the structure (e. g., gvz = galvanized steel, A4 = stainless steel A4, HCR = high corrosion resistant steel, etc.). If we expand one of these anchor materials, then all product sizes, the corresponding anchorage depths, the state of the design (Error12 = invalid design result, Ok12 = valid design result) and the utilization for tension, shear and combined tension and shear will be displayed in the third level of the structure. A blue triangle at the bottom right of the value of the embedment depth indicates an injection system with variable anchorage depths. Clicking on this triangle opens an input window where you may enter the anchorage depth. The utilization corresponds to the percentage utilization of the product for tension, shear and combined tension and shear.

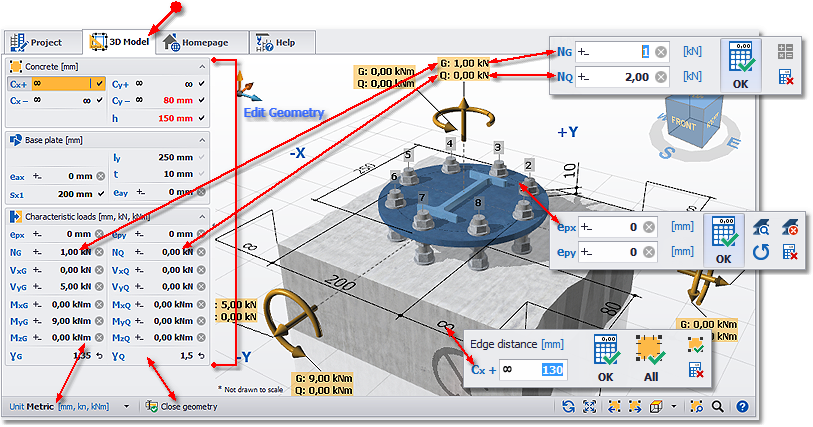

The 3D-Model shows your application including concrete component (base material), attachment, anchor layout, profile and loads. Based on this information a design is carried out for the selected anchor in real time at any change of the entered data and the result is displayed in the status bar.

DesignFiX - FEM-Module

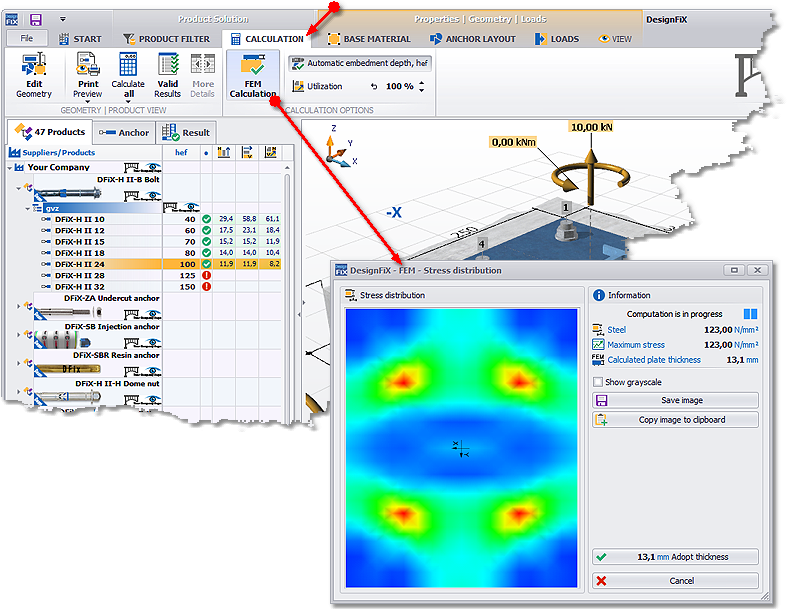

The calculation of the anchor plate thickness is included in the module “Anchor Design

DesignFiX offers a Finite Element Program (FEM) for the calculation of the base plate thickness. This program is only active if a profile is present, a valid design result is available and at least one anchor is loaded in tension. Steel type and corresponding yield strength fyk can be selected or entered user-defined on the tab ANCHOR LAYOUT. The ‘FEM calculation’ is started with the function FEM calculation on the tab CALCULATION. You may accept the result with the function ‘Adopt thickness’. Then the accepted base plate thickness is used in the printout.

In Black On White

This result will impress you

In Black On White

This result will impress you

Only the result is important

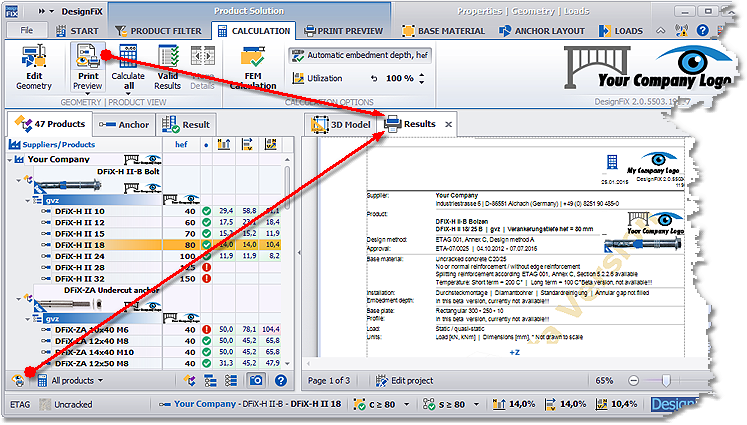

DesignFiX offers two functions to display the print preview:

  • In the ribbon bar on the tab CALCULATION
  • In the status bar of the product selection.

Printout with many options

The function construction_progress-edit16Edit project in the status bar of the print preview guides you to the program area where you may edit information such as name, company, sender, recipient, etc.
