New Functions in Version 2.1

To distinguish attachments made of steel or concrete, an option to select further types of attachment is introduced on the tab ANCHOR LAYOUT. In addition to anchor plates made of steel, concreted attachments (rectangular, circular, rhombic) are available that are fastened with reinforcement bars. The choice of the attachment type automatically influences the product selection.

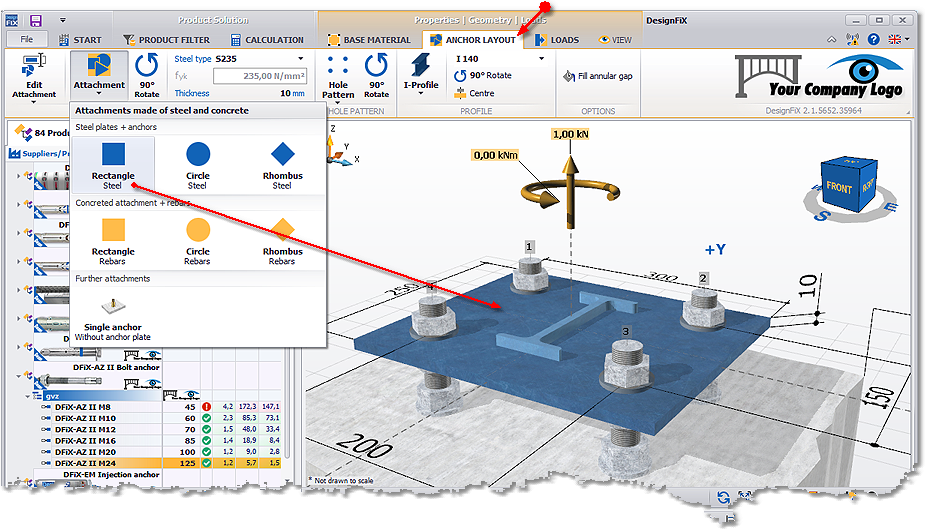

Rectangular attachment of steel + anchor:

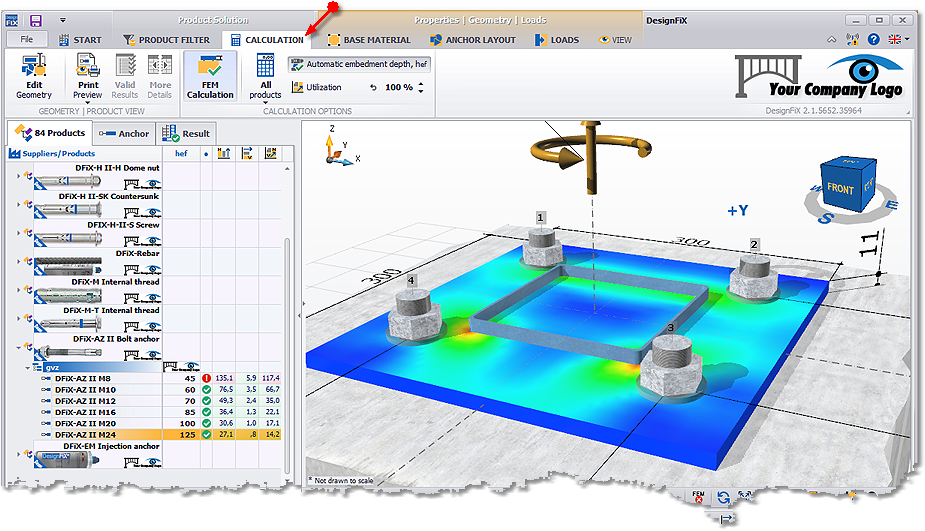

Rectangular attachment of steel + anchor + FEM:

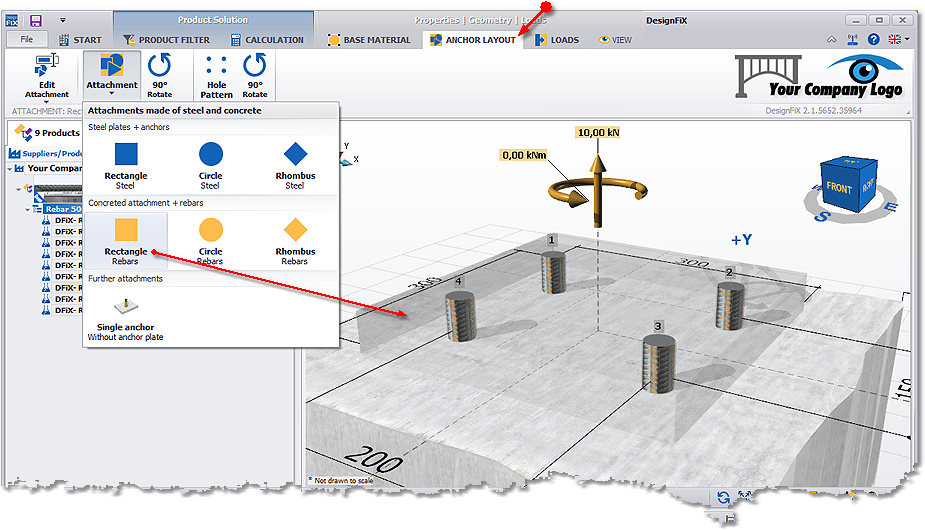

Rectangular attachment of concrete + rebars:

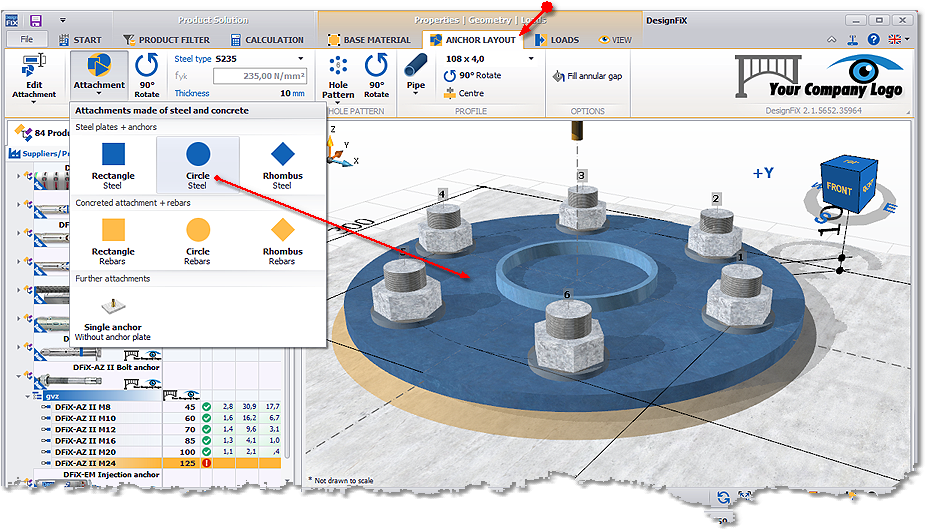

Round attachment of steel + anchor:

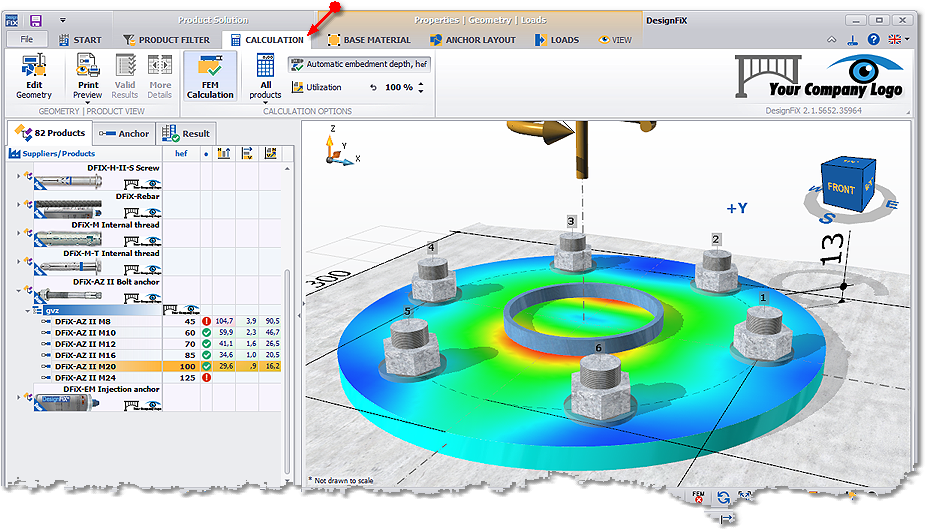

Round attachment of steel + anchor + FEM:

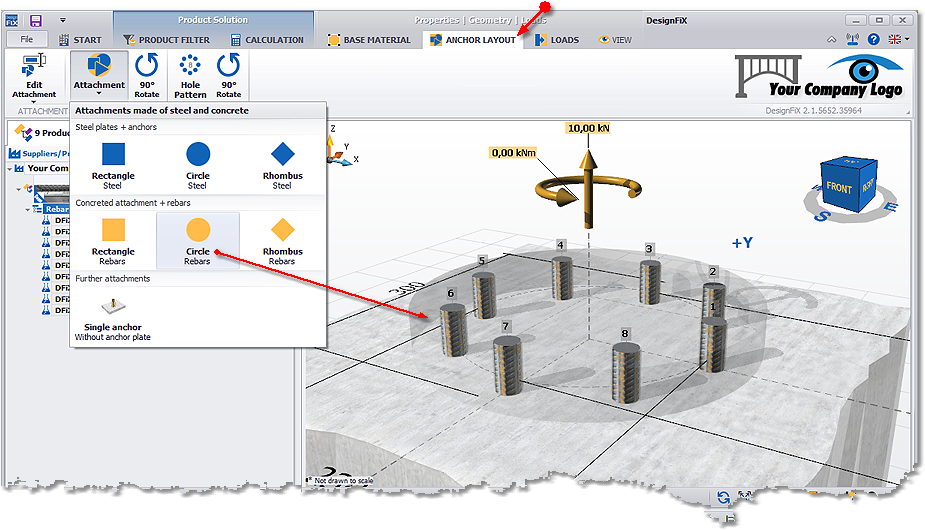

Round attachment of concrete + rebars:
